完美解决docx4j变量替换的问题

目录

• 测试代码
• docx4j版本
• 下面是工具类

最近工作上需要自己完成word文档变量替换的问题

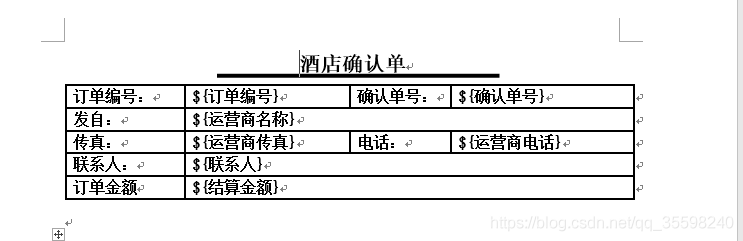

把里面的变量给替换成数据库里的值，但是由于在word文档渲染成xml的时候，会通过某些原因把字段放在不同层次的xml标签

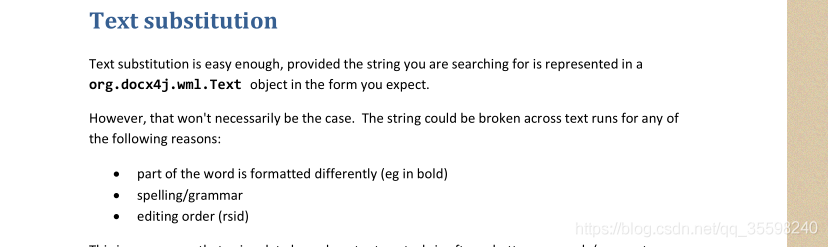

上面是docx4j文档说的原因，大概是字体格式不同（我的问题是用了粗体 ${ 和 正常中文是不同格式的），拼写语法问题，编辑顺序。

在StackOverflow 找了很久解决方案，Variableprepare.prepare方法确实测试后能解决部分替换问题，但还是不能满足我的需求。

阅读源码后重新清扫了一下字符串。

测试代码

  public static void main(String[] args) throws Exception {        File file = new File("C:\\Users\\scoli\\Desktop\\t.docx");        WordprocessingMLPackage doc = WordprocessingMLPackage.load(new FileInputStream(file));        Docx4jUtils.cleanDocumentPart(doc.getMainDocumentPart());        Map map = new HashMap();        map.put("订单编号", "1");        OutputStream outputStream = new FileOutputStream(new File("C:\\Users\\scoli\\Desktop\\test1.docx"));        MainDocumentPart mainDocumentPart = doc.getMainDocumentPart();        if (!map.isEmpty()) {            // 替换文本内容            mainDocumentPart.variableReplace(map);        }        // 输出word文件        doc.save(outputStream);        outputStream.flush();    }

docx4j版本

 <!--docx4j支持 start-->        <dependency>            <groupId>org.docx4j</groupId>            <artifactId>docx4j</artifactId>            <version>3.3.6</version>            <exclusions>                <exclusion>                    <groupId>org.slf4j</groupId>                    <artifactId>slf4j-log4j12</artifactId>                </exclusion>            </exclusions>        </dependency>        <dependency>            <groupId>org.docx4j</groupId>            <artifactId>docx4j-export-fo</artifactId>            <version>3.3.6</version>        </dependency>        <!--docx4j支持 end-->

下面是工具类

package zwy.saas.common.util;  import org.docx4j.XmlUtils;import org.docx4j.jaxb.Context;import org.docx4j.openpackaging.packages.WordprocessingMLPackage;import org.docx4j.openpackaging.parts.WordprocessingML.MainDocumentPart;import org.docx4j.wml.Document;import org.slf4j.Logger;import org.slf4j.LoggerFactory; import javax.servlet.http.HttpServletResponse;import javax.xml.bind.JAXBContext;import javax.xml.bind.JAXBException;import java.io.InputStream;import java.io.OutputStream;import java.net.URLEncoder;import java.util.Map;import java.util.regex.Pattern; /** * 关于文件操作的工具类 * * @author kaizen * @date 2018-10-23 17:21:36 */public final class Docx4jUtils {     private static final Logger logger = LoggerFactory.getLogger(Docx4jUtils.class);     /**     * 替换变量并下载word文档     *     * @param inputStream     * @param map     * @param response     * @param fileName     */    public static void downloadDocUseDoc4j(InputStream inputStream, Map<String, String> map,                                          HttpServletResponse response, String fileName) {         try {            // 设置响应头            fileName = URLEncoder.encode(fileName, "UTF-8");            response.setContentType("application/octet-stream;charset=UTF-8");            response.setCharacterEncoding("utf-8");            response.setHeader("Content-Disposition", "attachment; filename=" + fileName + ".docx");            response.setHeader("Access-Control-Expose-Headers", "Content-Disposition");             OutputStream outs  = response.getOutputStream();            Docx4jUtils.replaceDocUseDoc4j(inputStream,map,outs);         } catch (Exception e) {            logger.error(e.getMessage(), e);        }    }     /**     * 替换变量并输出word文档     * @param inputStream     * @param map     * @param outputStream     */    public static void replaceDocUseDoc4j(InputStream inputStream, Map<String, String> map,                                          OutputStream outputStream) {        try {            WordprocessingMLPackage doc = WordprocessingMLPackage.load(inputStream);            MainDocumentPart mainDocumentPart = doc.getMainDocumentPart();            if (null != map && !map.isEmpty()) {                // 将${}里的内容结构层次替换为一层                Docx4jUtils .cleanDocumentPart(mainDocumentPart);                // 替换文本内容                mainDocumentPart.variableReplace(map);            }             // 输出word文件            doc.save(outputStream);            outputStream.flush();        } catch (Exception e) {            logger.error(e.getMessage(), e);        }    }      /**     * cleanDocumentPart     *     * @param documentPart     */    public static boolean cleanDocumentPart(MainDocumentPart documentPart) throws Exception {        if (documentPart == null) {            return false;        }        Document document = documentPart.getContents();        String wmlTemplate =                XmlUtils.marshaltoString(document, true, false, Context.jc);        document = (Document) XmlUtils.unwrap(DocxVariableClearUtils.doCleanDocumentPart(wmlTemplate, Context.jc));        documentPart.setContents(document);        return true;    }     /**     * 清扫 docx4j 模板变量字符,通常以${variable}形式     * <p>     * XXX: 主要在上传模板时处理一下, 后续     *     * @author liliang     * @since 2018-11-07     */    private static class DocxVariableClearUtils {          /**         * 去任意XML标签         */        private static final Pattern XML_PATTERN = Pattern.compile("<[^>]*>");         private DocxVariableClearUtils() {        }         /**         * start符号         */        private static final char PREFIX = '$';         /**         * 中包含         */        private static final char LEFT_BRACE = '{';         /**         * 结尾         */        private static final char RIGHT_BRACE = '}';         /**         * 未开始         */        private static final int NONE_START = -1;         /**         * 未开始         */        private static final int NONE_START_INDEX = -1;         /**         * 开始         */        private static final int PREFIX_STATUS = 1;         /**         * 左括号         */        private static final int LEFT_BRACE_STATUS = 2;         /**         * 右括号         */        private static final int RIGHT_BRACE_STATUS = 3;          /**         * doCleanDocumentPart         *         * @param wmlTemplate         * @param jc         * @return         * @throws JAXBException         */        private static Object doCleanDocumentPart(String wmlTemplate, JAXBContext jc) throws JAXBException {            // 进入变量块位置            int curStatus = NONE_START;            // 开始位置            int keyStartIndex = NONE_START_INDEX;            // 当前位置            int curIndex = 0;            char[] textCharacters = wmlTemplate.toCharArray();            StringBuilder documentBuilder = new StringBuilder(textCharacters.length);            documentBuilder.append(textCharacters);            // 新文档            StringBuilder newDocumentBuilder = new StringBuilder(textCharacters.length);            // 最后一次写位置            int lastWriteIndex = 0;            for (char c : textCharacters) {                switch (c) {                    case PREFIX:                        // TODO 不管其何状态直接修改指针,这也意味着变量名称里面不能有PREFIX                        keyStartIndex = curIndex;                        curStatus = PREFIX_STATUS;                        break;                    case LEFT_BRACE:                        if (curStatus == PREFIX_STATUS) {                            curStatus = LEFT_BRACE_STATUS;                        }                        break;                    case RIGHT_BRACE:                        if (curStatus == LEFT_BRACE_STATUS) {                            // 接上之前的字符                            newDocumentBuilder.append(documentBuilder.substring(lastWriteIndex, keyStartIndex));                            // 结束位置                            int keyEndIndex = curIndex + 1;                            // 替换                            String rawKey = documentBuilder.substring(keyStartIndex, keyEndIndex);                            // 干掉多余标签                            String mappingKey = XML_PATTERN.matcher(rawKey).replaceAll("");                            if (!mappingKey.equals(rawKey)) {                                char[] rawKeyChars = rawKey.toCharArray();                                // 保留原格式                                StringBuilder rawStringBuilder = new StringBuilder(rawKey.length());                                // 去掉变量引用字符                                for (char rawChar : rawKeyChars) {                                    if (rawChar == PREFIX || rawChar == LEFT_BRACE || rawChar == RIGHT_BRACE) {                                        continue;                                    }                                    rawStringBuilder.append(rawChar);                                }                                // FIXME 要求变量连在一起                                String variable = mappingKey.substring(2, mappingKey.length() - 1);                                int variableStart = rawStringBuilder.indexOf(variable);                                if (variableStart > 0) {                                    rawStringBuilder = rawStringBuilder.replace(variableStart, variableStart + variable.length(), mappingKey);                                }                                newDocumentBuilder.append(rawStringBuilder.toString());                            } else {                                newDocumentBuilder.append(mappingKey);                            }                            lastWriteIndex = keyEndIndex;                             curStatus = NONE_START;                            keyStartIndex = NONE_START_INDEX;                        }                    default:                        break;                }                curIndex++;            }            // 余部            if (lastWriteIndex < documentBuilder.length()) {                newDocumentBuilder.append(documentBuilder.substring(lastWriteIndex));            }            return XmlUtils.unmarshalString(newDocumentBuilder.toString(), jc);        }     }}

以上为个人经验，希望能给大家一个参考，也希望大家多多支持我们。
